RuggedBoard-A5D2x

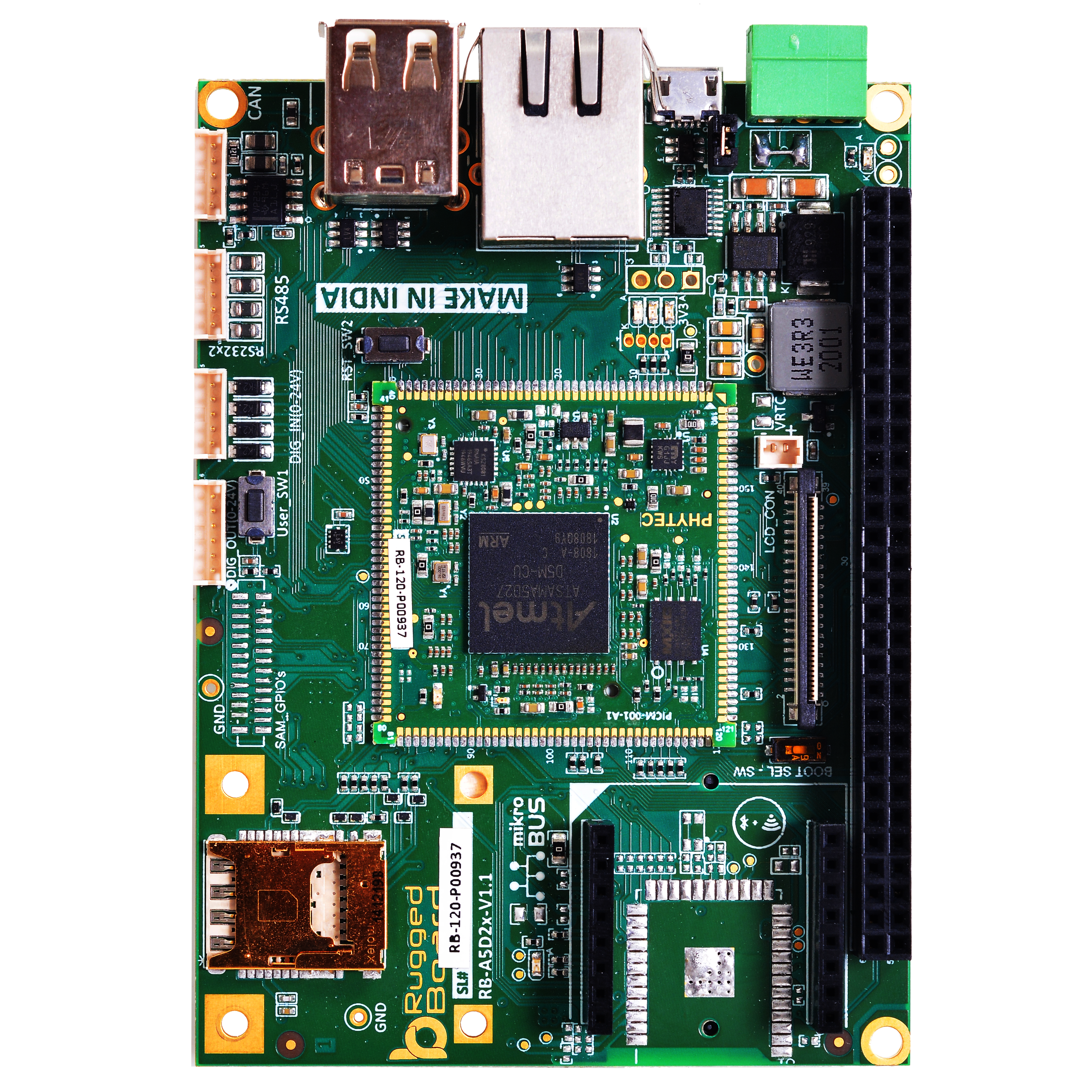

RuggedBoard is an Open source Industrial single board computer powered by ARM Cortex-A5 SoC @500 MHz, implemented with the finest platform for rapid prototyping. The usage of System On Module over a System On Chip is the most rapid way to achieve time to market, curtail development risks for product quantities ranging from a few hundred to thousands.

RuggedBoard- A5D2x consists of Multiple Interfaces such as Ethernet, RS232, CAN, RS485, Digital Input and Digital Output with optically isolated, Standard MikroBus header for Add-On Sensors, Actuators and Multiple Wireless Modules such as ZigBee, LoRa, Bluetooth etc. mPCIe connector with USB interface used for Cloud Connectivity modules 3G, 4G, NB-IoT, WiFi. Expansion header with  GPIO, UART, I2C, SPI, PWR etc.



RuggedBoard - A5D2x Specification:



                                                                                           System On Module

SOC	Microchip ATSAMA5d2x Cortex-A5
Frequency	500MHz
RAM	64 MB DDR3
Flash	32 MB NOR flash
SD Card	SD Card Upto 32 GB



                                                                                         Industrial Interface

RS232	2x RS232
USB	2 x USB*(1x Muxed with mPCIe)
Digital Input	4x DIN (Isolated ~ 24V)
Digital Output	4x DOUT (Isolated ~ 24V)
RS485	1xRs485
CAN	1xCAN



                                                                                                 Internet Access

Ethernet	1 x Ethernet 10/100
Wi-Fi/BT	Optional on Board Wi-Fi/BT
SIM Card	1 x SIM Slot (for mPCIe Based GSM Module)

                                                                                        Add-On Module Interfaces

Mikro-BUS	Standard Mikro-BUS
mPCIe	1 x mPCIe* (Internally USB Signals is used)
Expansion Header	SPI, I2C, UART, PWM, GPIO,ADC



                                                                                                          Power

Input Power	DC +5V or Micro USB Supply
Temperature Range	- 40° to + 85°C

Optional Accessories

Accessories Set

Micro USB Cable, Ethernet Cable, Power Adapter 5V/3A

Click the links below to view and download documents related to RuggedBoard-A5D2x.

• Hardware and System Reference Manual
• Carrier Board Schematics
• Default Software Release Notes
• Product Flyer

RuggedBoard is an Open source Industrial single board computer powered by ARM Cortex-A5 SoC @500 MHz, implemented with the finest platform for rapid prototyping. The usage of System On Module over a System On Chip is the rapid way to achieve time to market, curtail development risks for product quantities ranging from a few hundred to thousands.

RuggedBoard- A5D2x consists of Multiple Interfaces such as Ethernet, RS232, CAN, RS485, Digital Input and Digital Output with optically isolated, Standard MikroBus header for Add-On Sensors, Actuators and Multiple Wireless Modules such as ZigBee, LoRa, Bluetooth etc. mPCIe connector with USB interface used for Cloud Connectivity modules 3G, 4G, NB-IoT, WiFi. Expansion header with  GPIO, UART, I2C, SPI, PWR etc.
